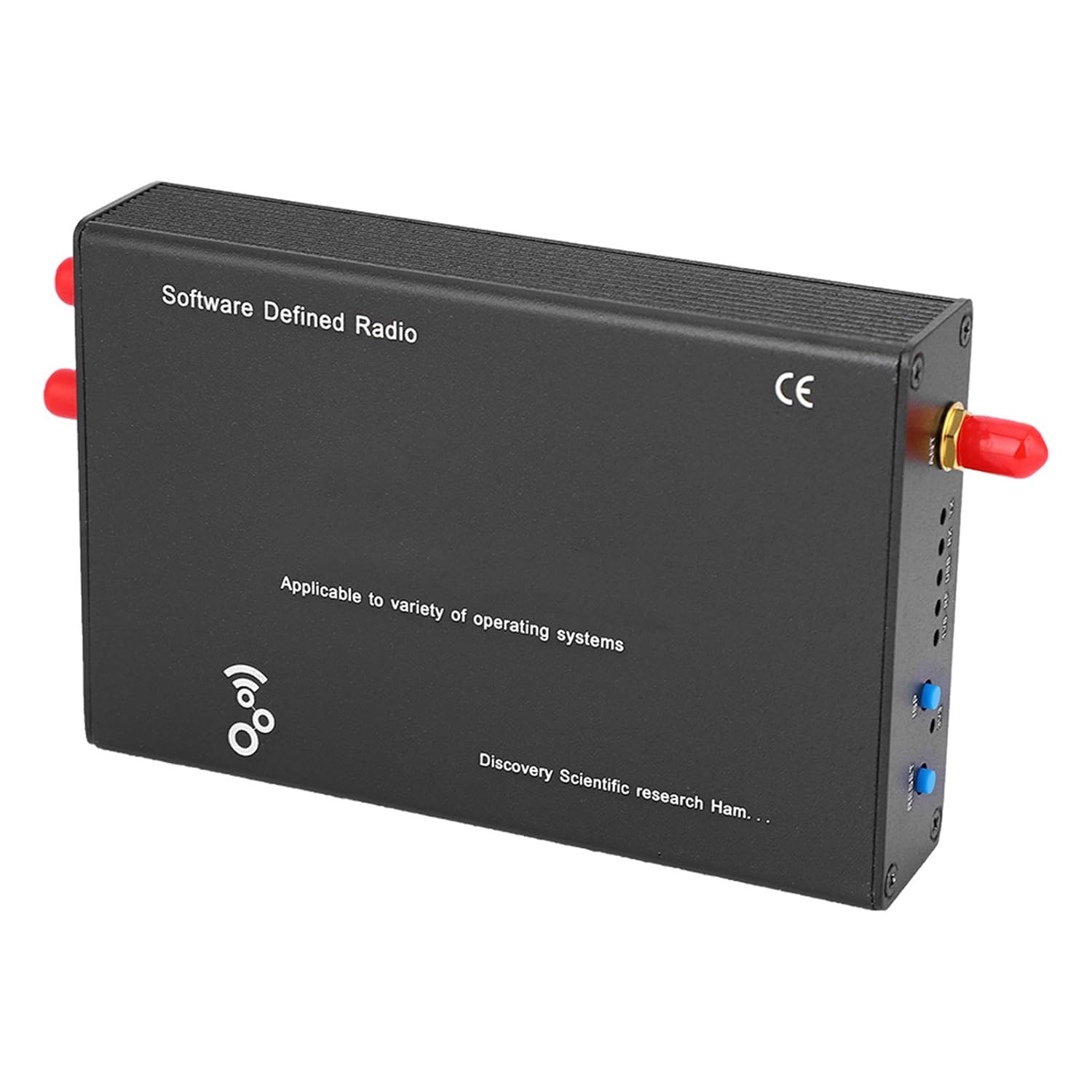

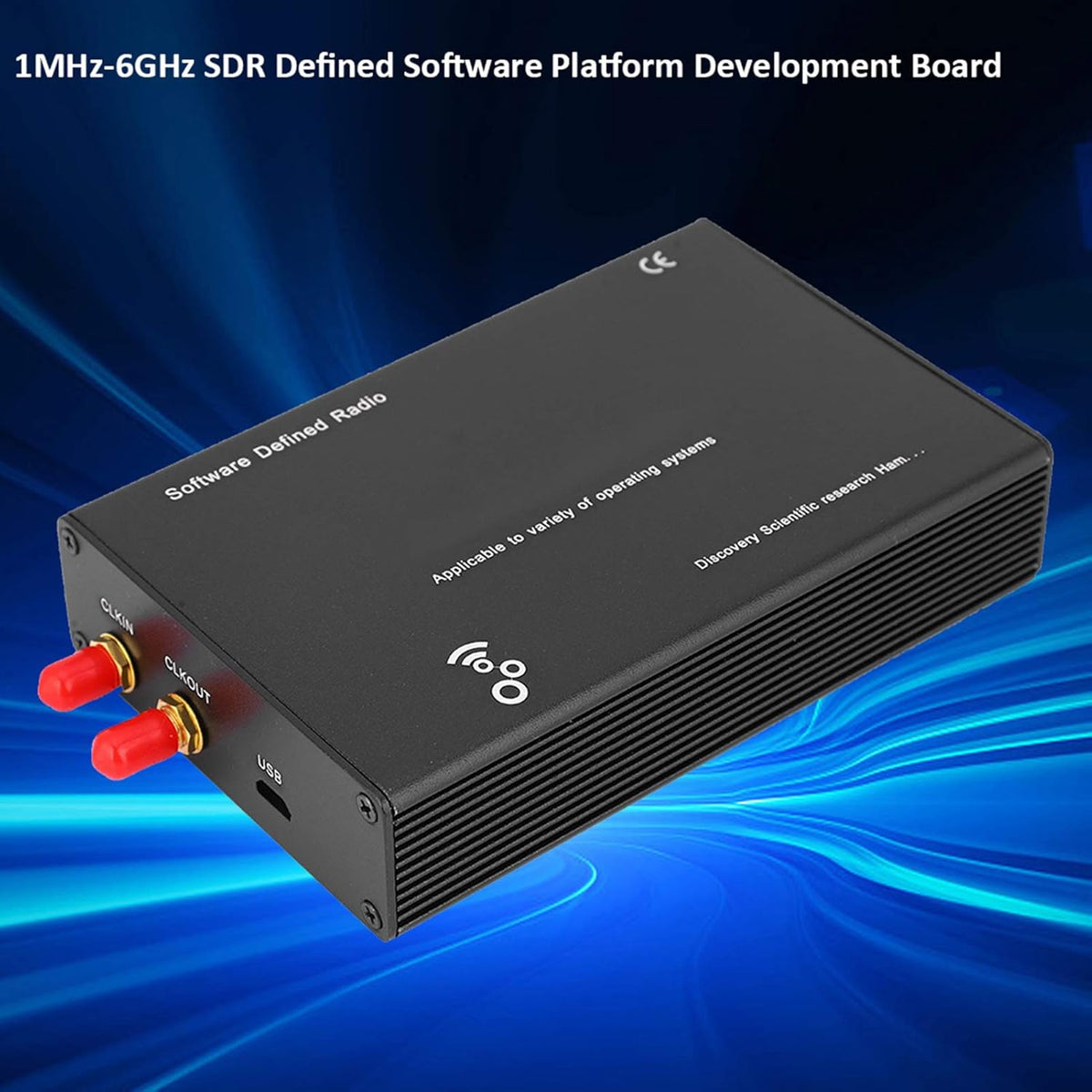

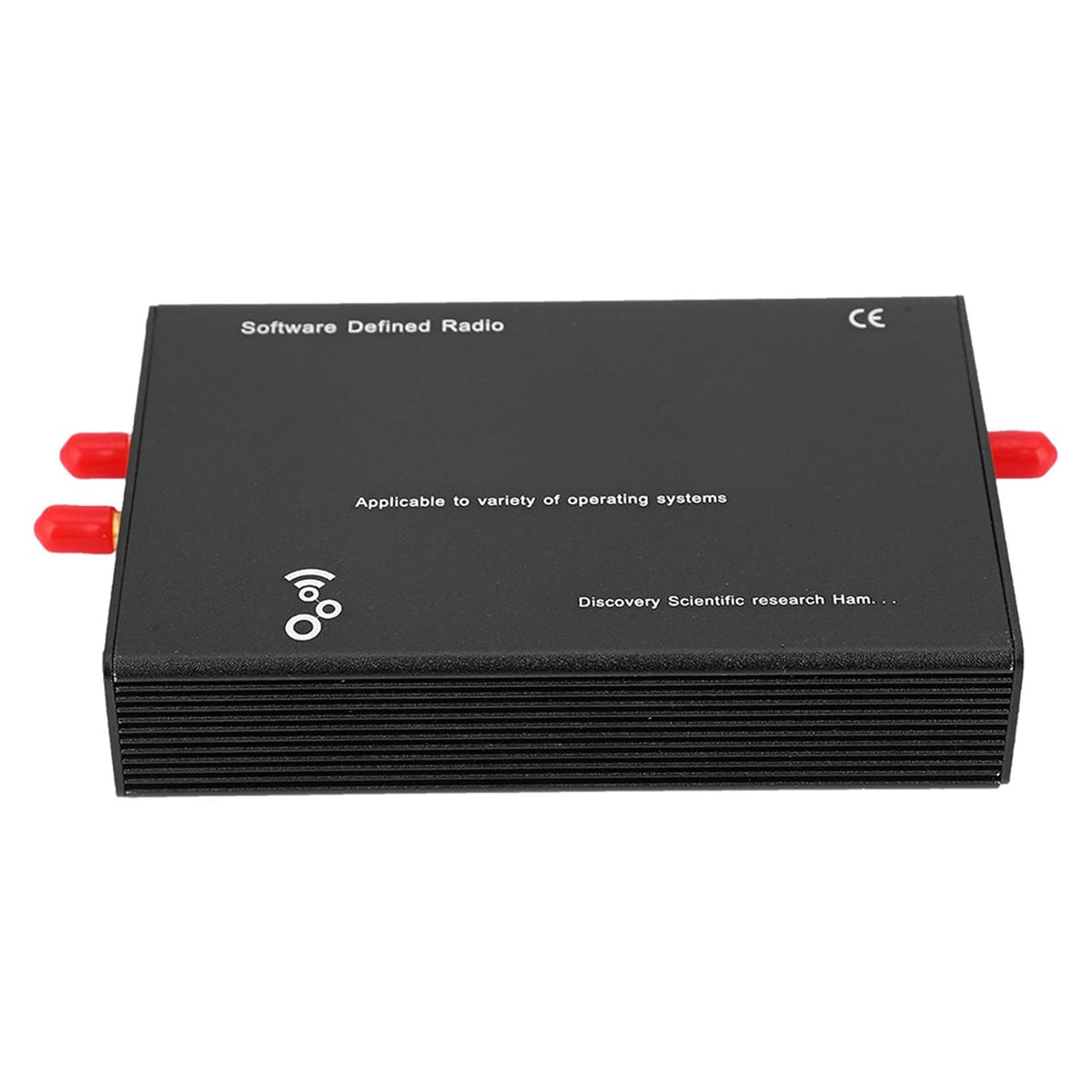

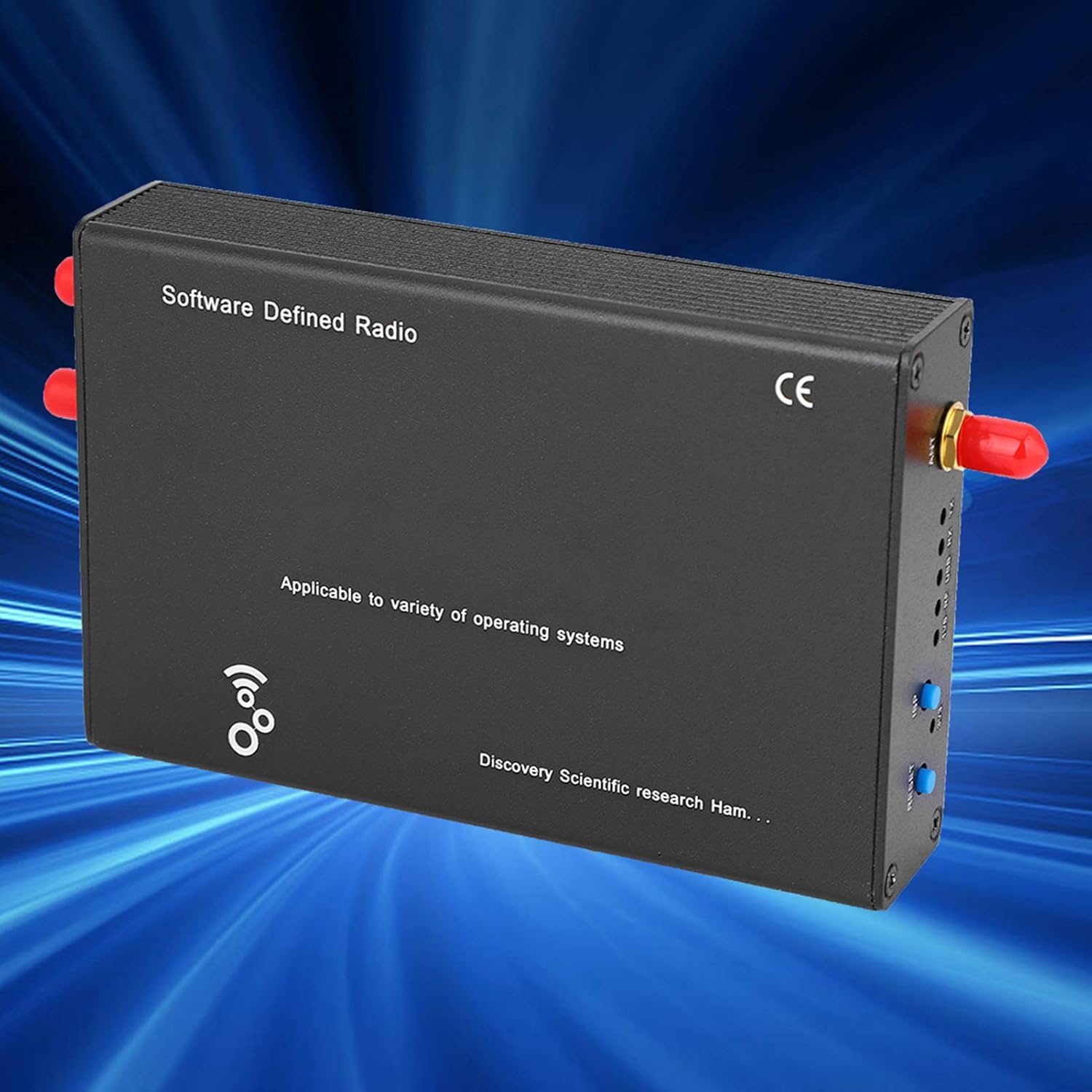

HackRF One SDR Platform Software Defined Radio Development Module 1MHz-6GHz Radio Communication Board 20Mbps 8BIT A580
HackRF One SDR Platform Software Defined Radio Development Module 1MHz-6GHz Radio Communication Board 20Mbps 8BIT A580
?Widely Operating Frequency: This HackRF One SDR platform software defined radio development module is working in 1 MHz to 6 GHz operating frequency which include RTL-SDR, Assembled ham it up up-converter, balun, adapters
?A Kind of Half-duplex Transceiver: This 1MHz-6GHz radio signal transmission device is kind of half-duplex transceiver which can collect up to 20 million samples per second and has 8-bit quadrature samples (8-bit I and 8-bit Q)
?High compatibility: This half-duplex transceiver radio signal transmission module is compatible with GNU Radio, SDR#, and more. Besides, it has software-configurable RX and TX gain and base-band filter
?Controllable Antenna Frequency: This 20Mbps 8BIT radio signal transmission module has software-controlled antenna port power (50 mA at 3.3 V) and SMA female antenna connector

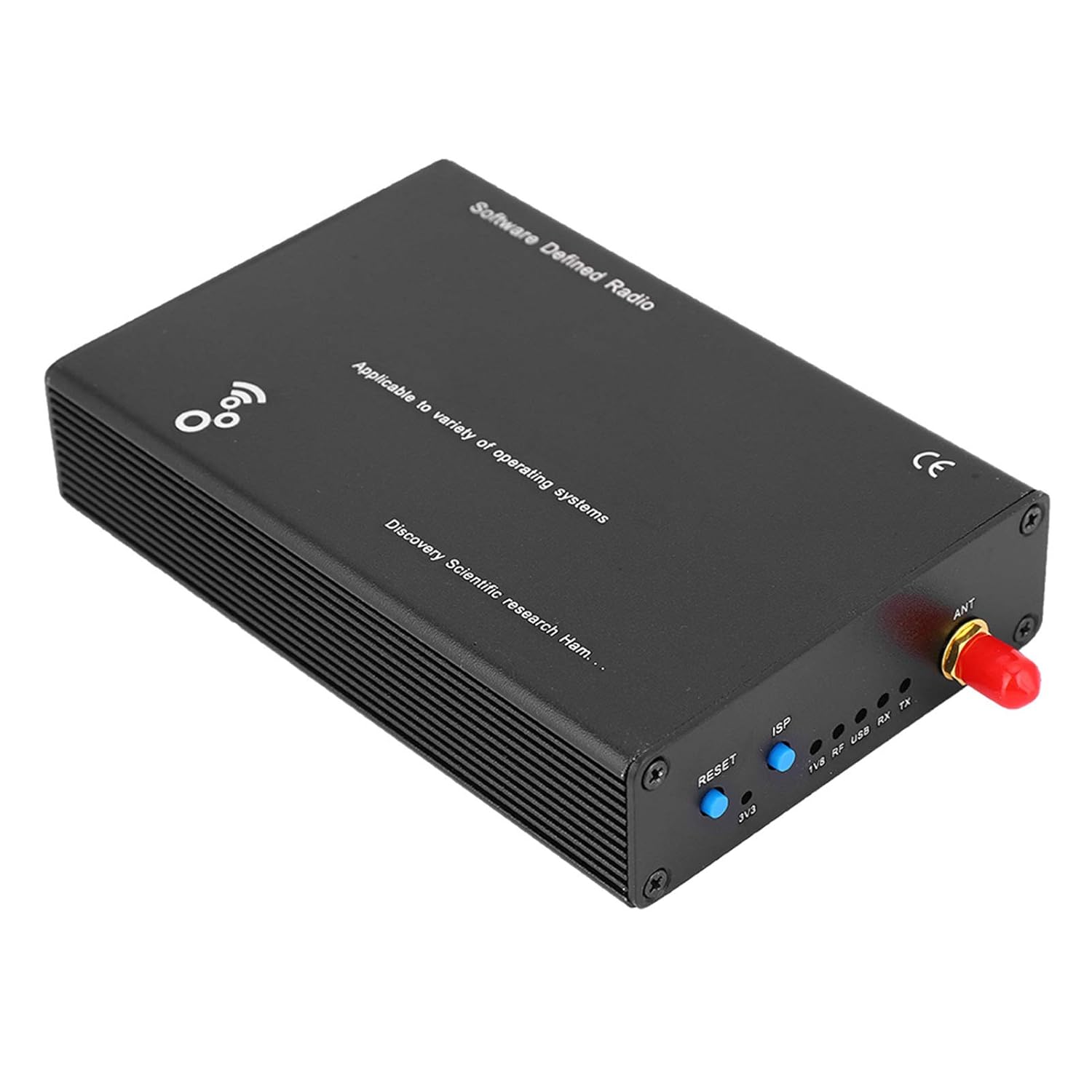

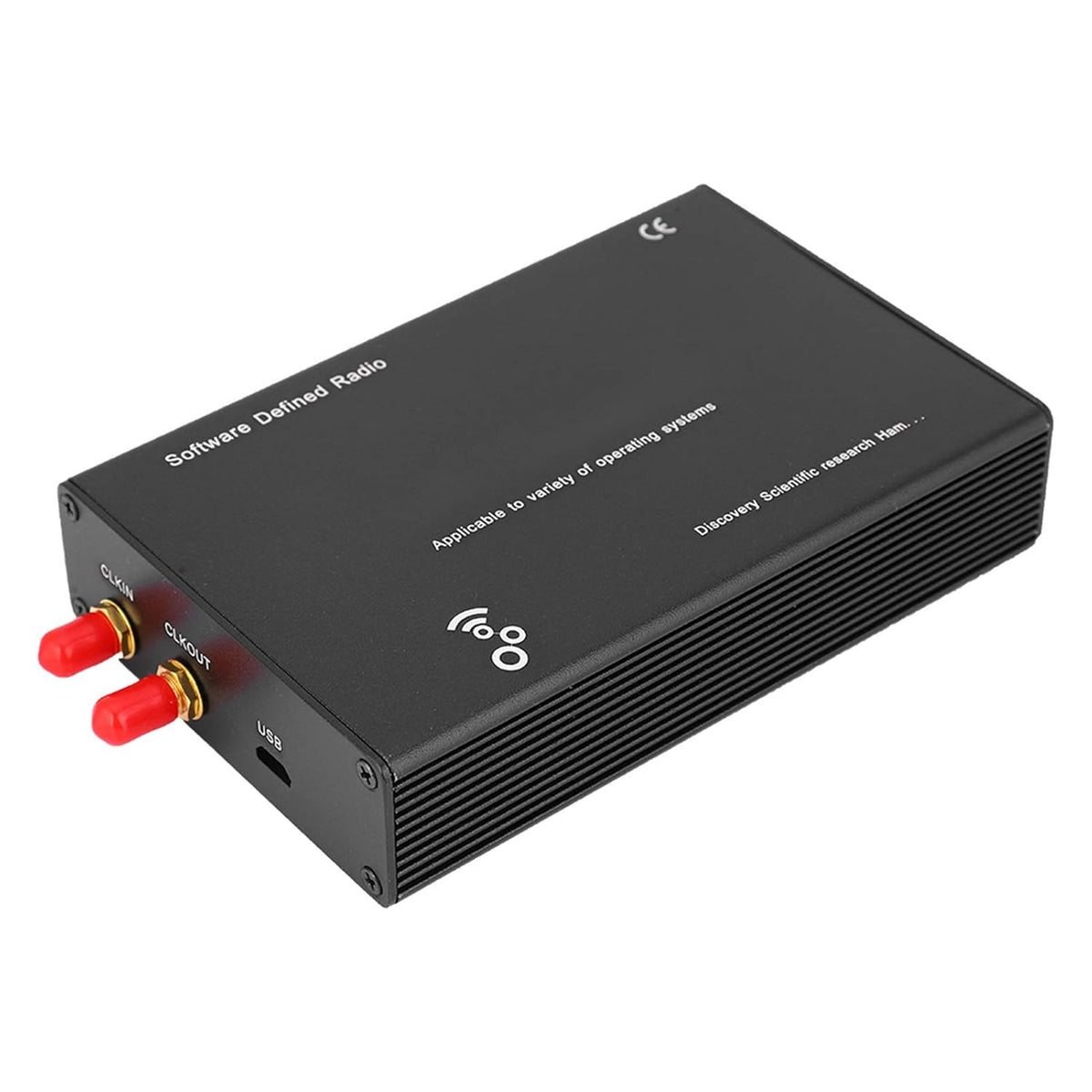

?Multiple Interfaces: This development module has SMA female clock input and output for synchronization, convenient buttons for programming, internal pin headers for expansion and Hi-Speed USB 2.0;?USB-powered;?Open source hardware
Scope of application: It is used for HF/UHF/VHF Including RTL-SDR, Assembled Ham It Up Upconverter, Balun, Adapters
Specification:
Condition: 100% Brand New
Item Type: Software Defined Radio Development Board
Frequency Band: 1MHz-6Ghz
Data Bandwidth: 20MHz
Sampling Accuracy ( ADC/DAC) : 8BIT
Sampling Speed ( ADC/DAC): 20Mbps
Interface: USB2.0
Open source
Maximum Transmitting Power: 10dbm
Maximum Receiving Power: -5dbm
64QAM Transmitting EVM: 1.5%
Complex Sampling Bandwidth: 20Mhz
Hardware:
Mixer RFFC5072: 80MHz-4200MHz
Wireless Bandwidth RF Transceiver MAX2837: 2.3Ghz-2.7Ghz
Processor LPC4330: Main Frequency 204MHz
Amplifier MGA-81563: 0.1-6Ghz, 3V, 14dbm

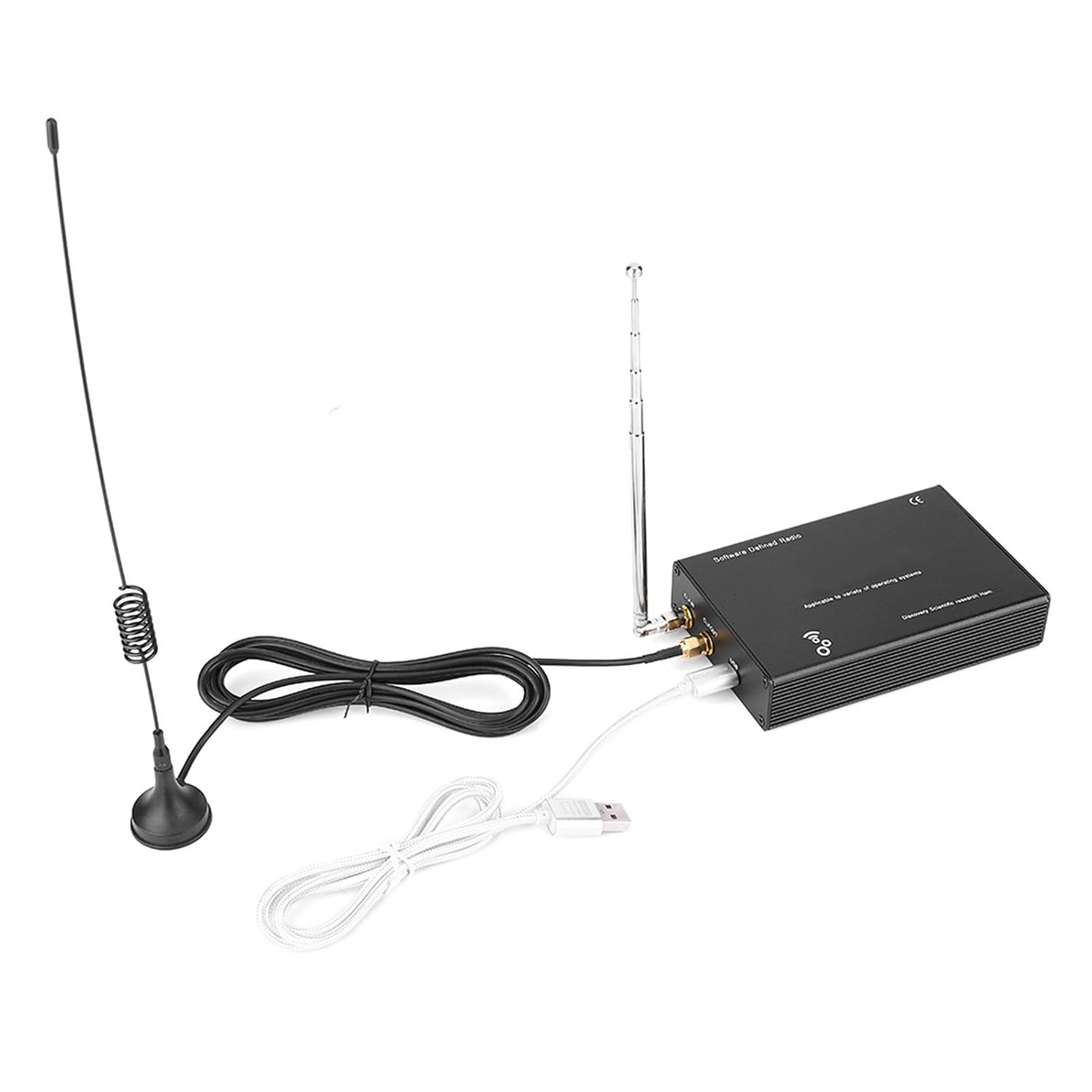

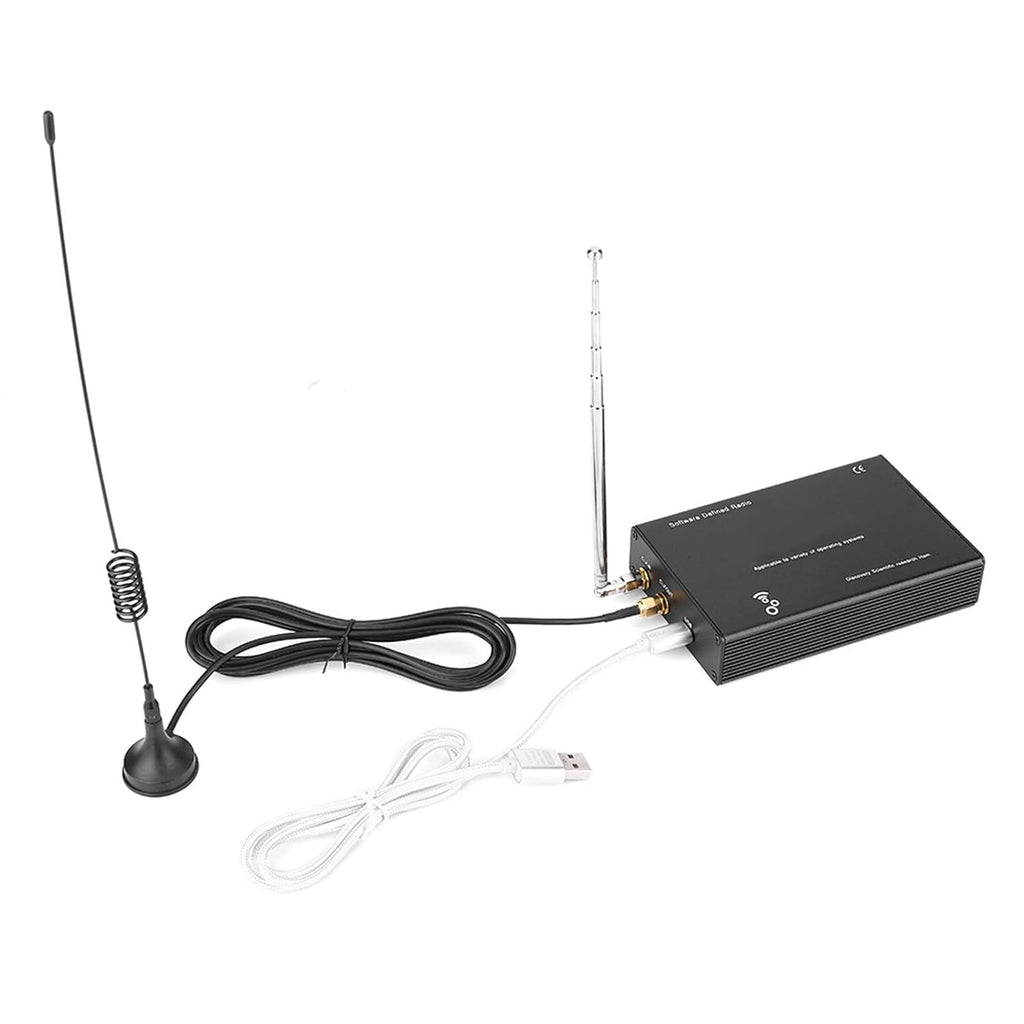

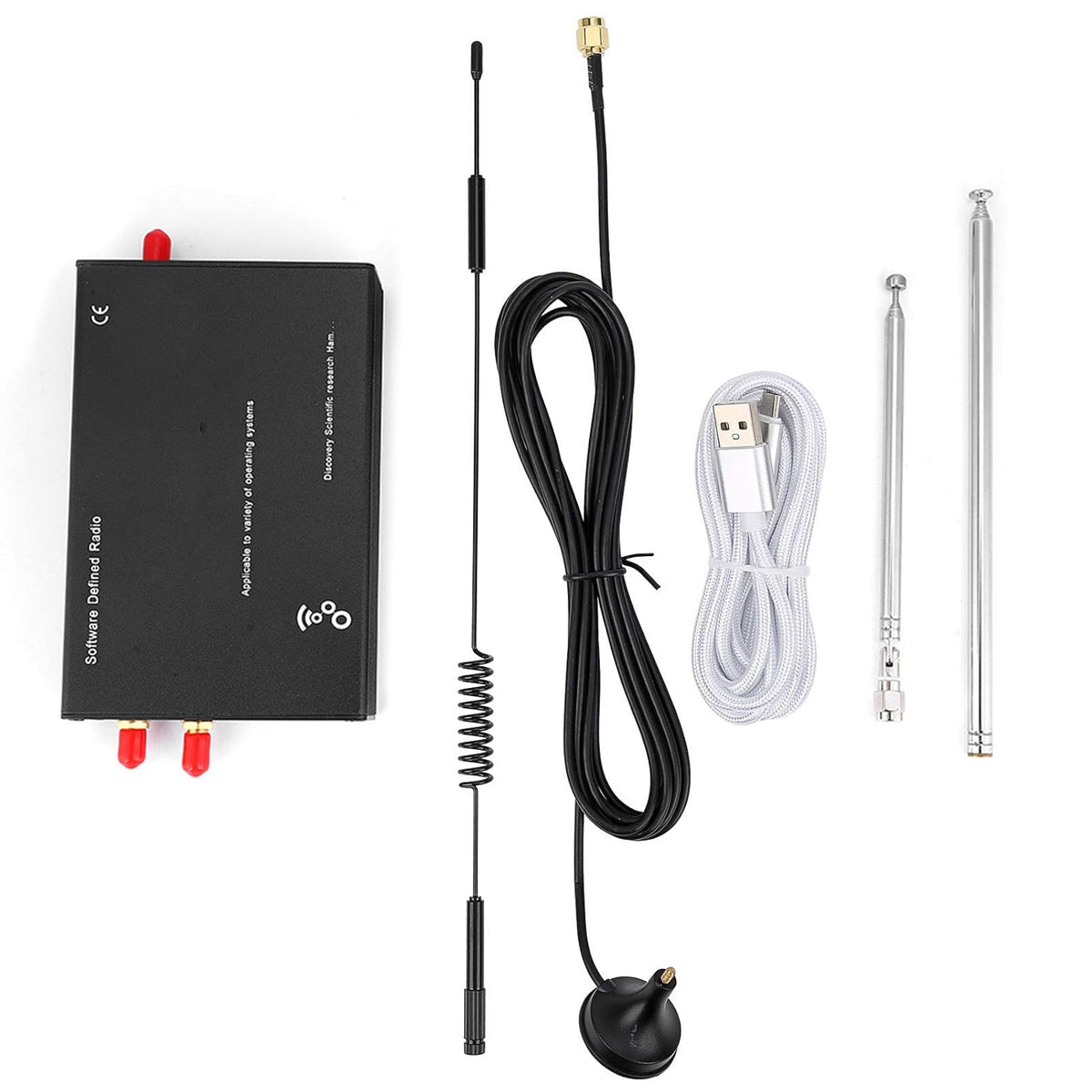

Package List:
1 x HackRF One SDR Platform Software Defined Radio Development Board
1 x Black Antenna
2 x Metal Antenna
1 x Data Line
1 x USB Cable
Note:
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
